Home > Products > Car Cameras > Dual Lens Camera
  • Dual Lens Camera
  • Part No.:EX06A
  • Dual Lens Camera,Two in One, AHD720P

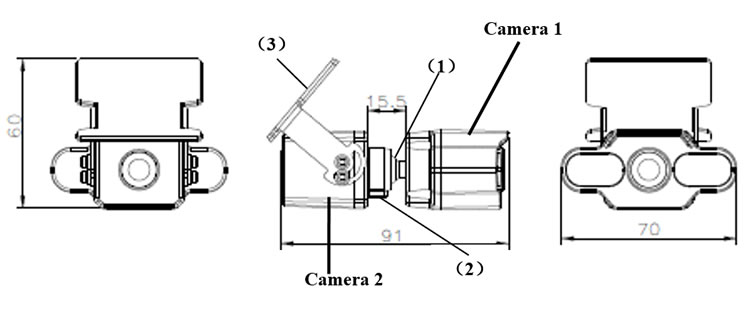

  • Operation procedures:

    1. Adjust the position of  (1) to change the angle of inner-forwarding camera 1.
    2. Adjust the position of (2) to change the angle of out-forwarding camera 2.
    3. Take off the 3M sticker of (3) to fix the whole camera to needed place.

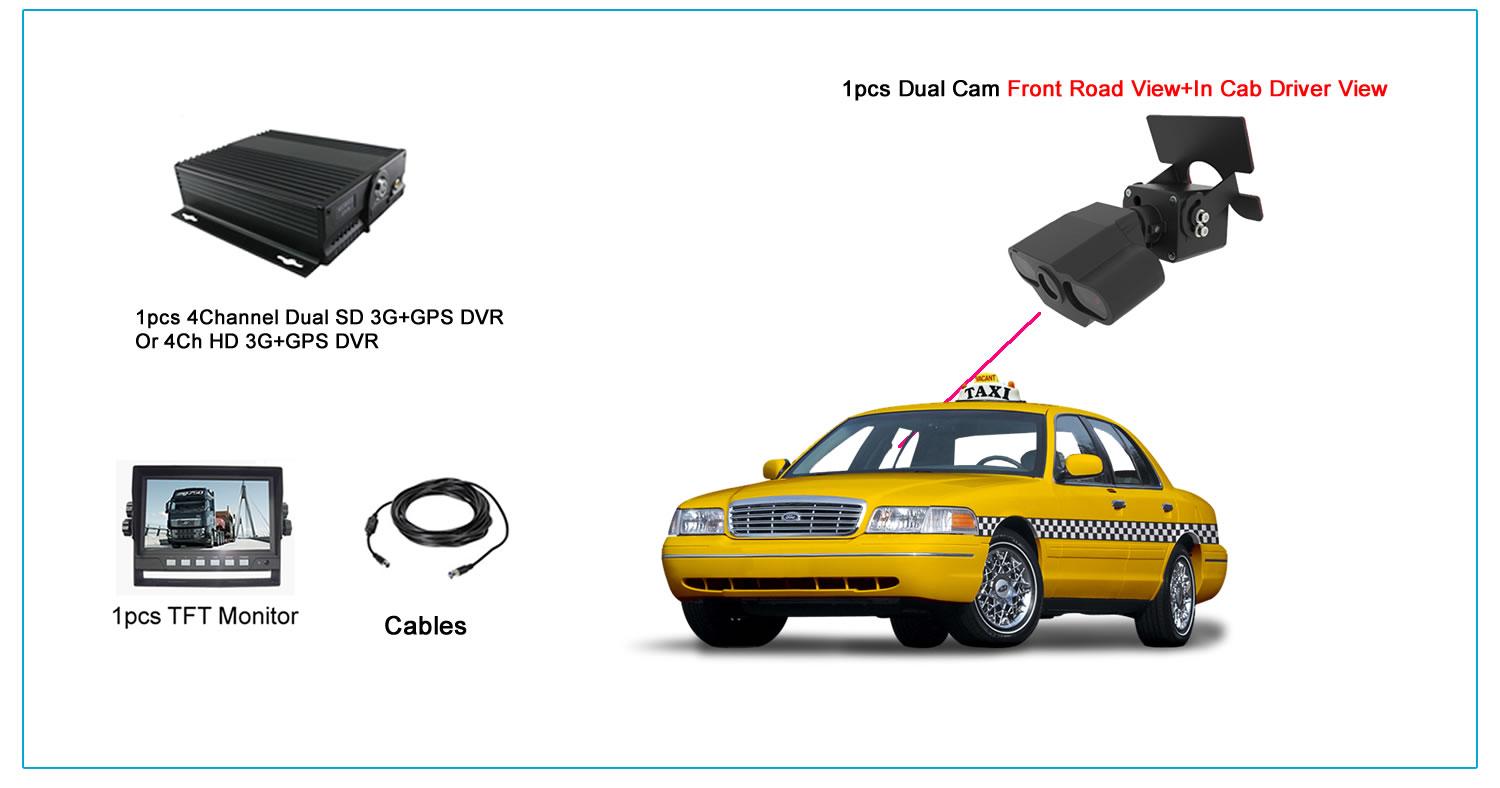

    Samples List for Taxi.jpg

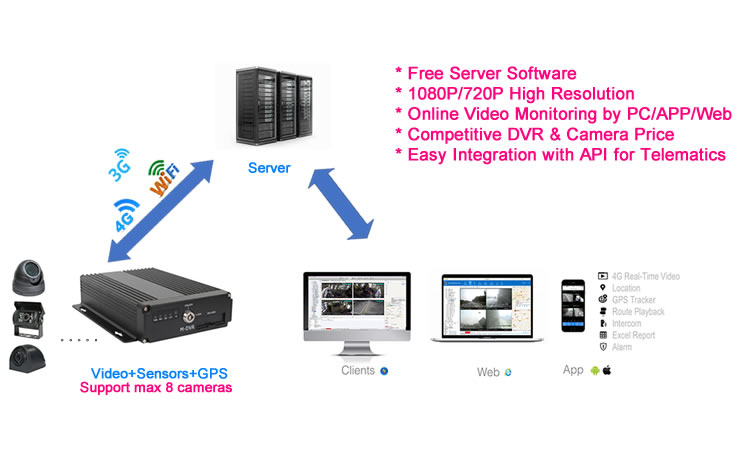

    Mobile DVR Real Time Monitoring System.jpg

    Features:

    ●  Aluminium allow housing.

    ●  Wide angle lens.

    ●  Cam2 120dB Real WDR.

    ●  Strong light inhibition.

    ●  Cam1 Build-in IR LED.

    ●  Cam1 Audio optional.

    ●  Cam1 Option 720P AHD/1000 TVL CVBS output.

    ●  Compatitable with Any type AHD/CCD Digital Video Recorder.

    Camera1

    Model

    EX06A

    Image Sensor

    1/3” CMOS   AR0130

    TV System

    PAL/NTSC   (optional)

    Picture Elements

    1280 (H) x 960   (V)

    Sensitivity

    0 Lux (IR LED   On)

    Scanning System

    Progressive   scan RGB CMOS

    Synchronization

    Internal

    S/N Ratio

    More than 44dB   (AGC Off)

    Auto Gain Control (AGC)

    Auto

    Electronic Shutter

    Auto

    BLC

    Auto

    Infrared Spectrum

    940nm

    Infrared LED

    6 LEDs

    Video Output

    1 Vp-p, 75Ω,AHD

    Audio

    Available

    Mirror

    Optional

    ICR

    N/A

    Noise Redution

    3D

    Dymamic range

    83.5 dB

    Lens

    f2.5mm   Megapixel

    Pan Adjusting

    0-50°

    Tilt Adjusting

    0-50°

    Power Supply

    9-18V DC

    Power Consumption

    110mA

    Weatherproof/Water Proof

    N/A

    Operating Temperature

    -30°C to +70°C

     Camera 2

    Model

    EX06A-2

    Image Sensor

    1/3” CMOS   AR0130

    TV System

    PAL/NTSC   (optional)

    Picture Elements

    1280 (H) x 960   (V)

    Sensitivity

    0.1 Lux/F1.2

    Scanning System

    Progressive   scan RGB CMOS

    Synchronization

    Internal

    S/N Ratio

    More than 44dB   (AGC Off)

    Auto Gain Control (AGC)

    Auto

    Electronic Shutter

    Auto

    BLC

    Auto

    Infrared Spectrum

    N/A

    Infrared LED

    N/A

    Video Output

    1 Vp-p, 75Ω,AHD

    Audio

    N/A

    Mirror

    Optional

    ICR

    N/A

    Noise Redution

    3D

    Dymamic range

    83.5 dB

    Lens

    f2.5mm   Megapixel

    Pan Adjusting

    N/A

    Tilt Adjusting

    0-80°

    Power Supply

    9-18V DC

    Power Consumption

    70mA

    Weatherproof/Water Proof

    N/A

    Operating Temperature

    -30°C to +70°C
