Home > Products > 3G/4G 4/8CH H.265 Mobile DVR > 4CH Hard Disk SD H.265 4G Mobile DVR
  • 4CH Hard Disk SD H.265 4G Mobile DVR
  • Part No.:T704 4CH-HD-DVR
  • H.265 4G 4x1080P Mobile DVR, 3G/4G+GPS+WiFi+G-sensor

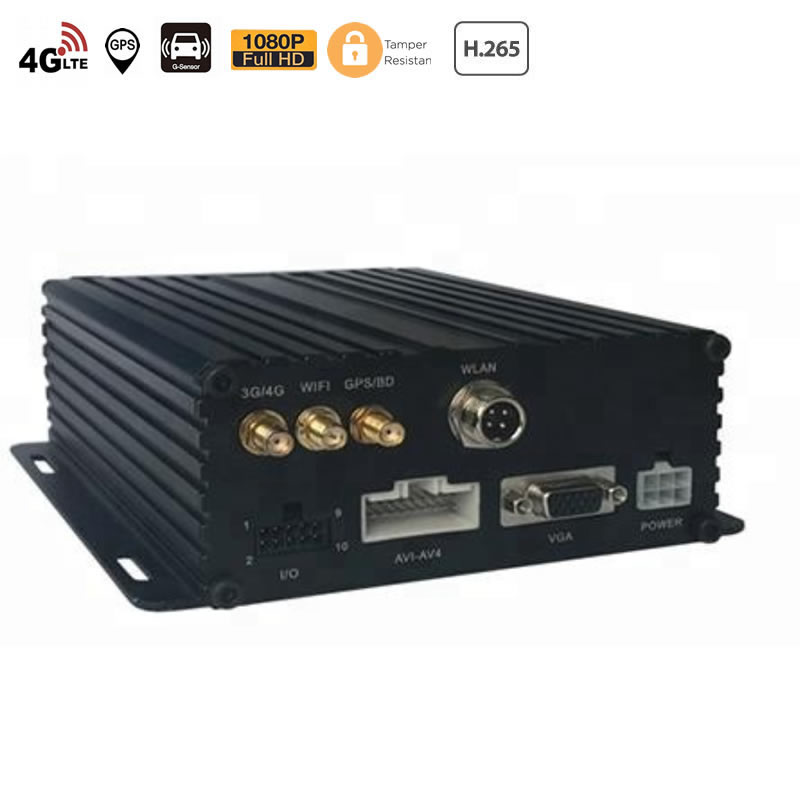

  • main 4CH HD01.jpg

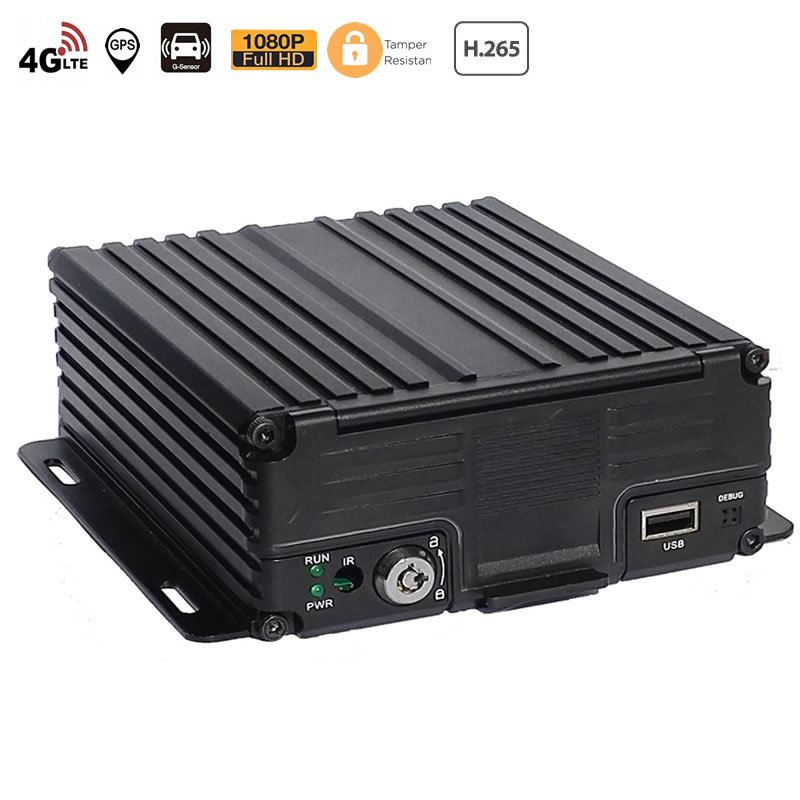

    main 4CH HD2.jpg

    Main Features:

    8-36V DC
    4CH 1080P/720P/960H/D1/CIF
    AHD/ANALOG/TVI/CVI/IPC INPUT
    H.265 CODING
    1*256G SD+1*2TB HDD/SSD
    3G/4G/GPS/WIFI
    1*VGA+1*CVBS
    1*WAN/LAN
    G-SENSOR


    Specification:

    Technical Parameter:

    Item

    Device   Parameter

    Performance

    System

    Main   Processor

    Hi3520DV400

    Operating   System

    Embedded   Linux OS

    Operating   Language

    Chinese/English/Russian

    Operating   Interface

    GUI,   Support mouse and remote control

    Password   Security

    Two Layer   password Admin/User

    Audio

    &

    Video



    Video   Standard

    PAL/NTSC

    Video   compression

    H.264/H264+/H265/H265+

     Image   resolution

    1080P/720P/960H/D1/CIF

    Playback   Quality

    1080P/720P/960H/D1/CIF

    Compound   mode

    A variety   of ways

    Decoding   ability

    4ch 1080P

    Recording   quality

    Class 1-6   optional

    Image   display

    Single/QUAD   display optional

    Audio   Compression

    G.726/G.711

    Audio   recording

    Audio   & Video synchronized recording

    Recording   & Playback

    Recording   mode

    Manual/Alarm

    Video bit   rate

    Full frame   4096Mbps6 classes   image quality optional

    Audio bit   rate

    8KB/s

    Storage   media

    SD card   and hard disk storage

    Video   inquiry

    Inquiry by   channel/Recording type/Alarm Type

    Local   playback

    Playback   by channel, time

    Firmware   upgrading

    Upgrading   mode

    Manual/Automatical/Remote/Emergency   Recovery

    Upgrading   method

    USB   disk/Wireless network/SD card

    Interface

    AV input

    4ch 4pin   aviation + 1ch 6pin aviation for IPC

    AV output

    1ch VGA   video output, 1ch aviation AV output

    Alarm   input

    4 digital   inputs (4 Positive/Negative trigger)

    SD card

    1 SDXC   High speed card (up to 1 x 256GB)

    HDD/SSD

    1 HDD/SSD   (up to 2TB, support hot plug/unplug)

    USB   interface

    1 USB 2.0   (support pen drive/mouse)

    Ignition   input

    1 ACC   signal

    UART

    1 LVTTL   Level

    LED   Indication

    PWR/RUN/SD/ALM

    Ethernet

    1 x 6 pin   aviation to RJ45 (10M/100M)

    750mA@12V

    IR

    1

    Disk lock

    1

    Debug port

    1

    Function   Extension

    GPS/BD/GLONASS

    Support   detecting antenna Plug in/Unplug/Short circuit

    2G/3G/4G

    Supports   CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

    WIFI

    802.11b/g/n,   2.4GHz

    Others

    Power   input

    8V~36V DC

    Power   output

    5V 300mA

    Power   consumption

    Standby   8.5mA

    Maximum   consumption 18W @12V 1.5A @24V 0.75A

    Working   temperature

    -20 --- 70

    Storage   Size

    1080P    1G/h/channel

    720P     0.5G/h/channel

    960H     0.38G/h/channel

    Dimension

    162mm*153mm*52mm
